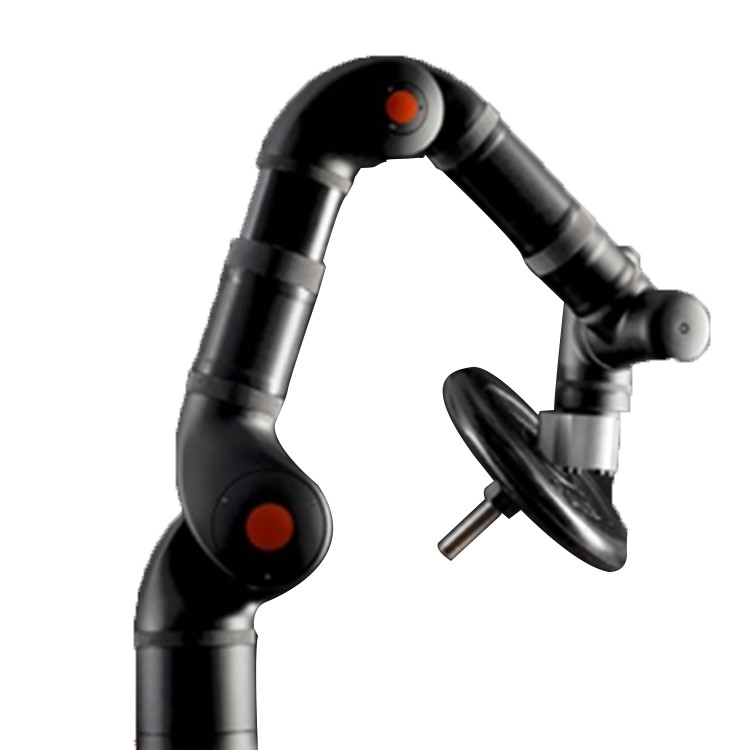

KR810 7 Axis Reach 850mm IP54 Collaborative Robot Arm

Brand Name : KOSSOW

Model Number : KR810

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : USD 20000/set

Payment Terms : T/T, L/C, Western Union

Supply Ability : 50 sets /Month

Delivery Time : 7 working days after deposit

Packaging Details : One 7 axis industrial robotic arm KR810 collaborative robot for kossow robot with robotiq gripper packing with fumigation wooden frame, WG: 1120 KG Controller and other parts packing with brown box, WG: 120 KG

Product name : 7 axis industrial robotic arm KR810 collaborative robot for kossow robot with robotiq gripper

Axis : 7

Payload : 10kg

Reach : 850mm

IP Protection : IP54

Handling capacity : 23.4kg

Repeatability : +/- 0.1mm

Joint Speed : 225deg / sec

Brakes on joints : Yes

Contact Now

7 axis industrial robotic arm KR810 collaborative robot for kossow

robot with robotiq gripper

Specification

General specifications KR 810
Reach (mm) 850
Payload (kg) 10
Weight (kg) 24
Joint Speed (deg / sec) 225
Joint Ranges J2 and J4: -70°/+180°. J1, J3, J5, J6 and J7: ±360°
Brakes on joints Yes
Absolute encoders on joints Yes
Repeatability (mm) +/- 0.1
Degrees of freedom 7
Foot print (mm) 130x130
Operating temperature (C°) 0-45
Body material Anodized aluminum

Safety KR 810
Protection rating IP54
Work without shielding Yes*
Impact control Yes
150N safe force limit on tool Yes

Controller I/O KR 810
Digital outputs 24V (pcs) 8
Relay outputs (pcs) 4
Digital inputs 3-30V (pcs) 16
Analogue I/O 0-10V (pcs) 2/2
Analogue I/O 4-20mA (pcs) 2/2
